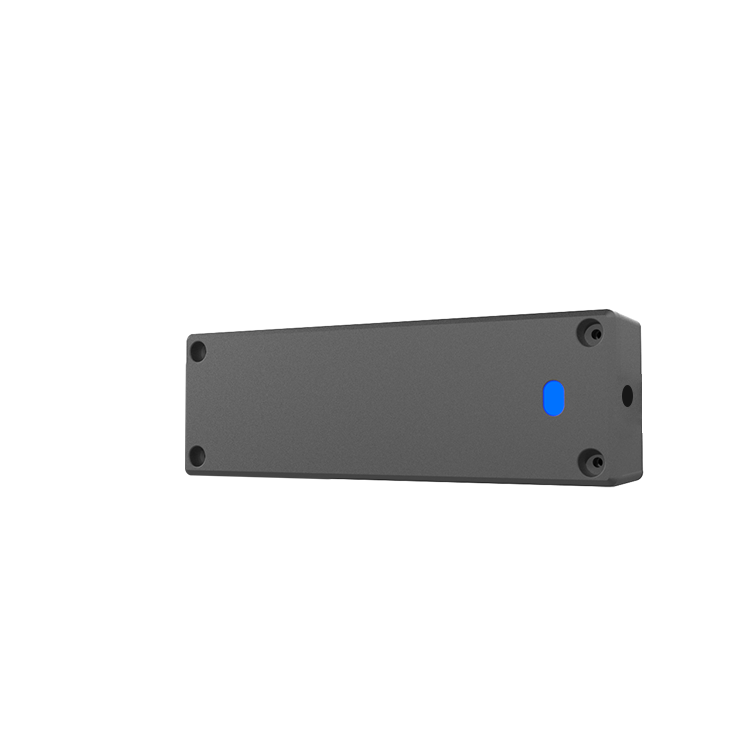

The F-box with a built-in WiFi module, this allow users to linked with "F-linX" APP for "safety center" to track all information about wireless safety edge of the door and gates.
Radio technology: Trio-Frequency technology
Frequency: Multi from 409.025 MHz – 458.4 MHz
Signal modulation: FSK
Signal range: 20 meters
Power supply: 3.6V DC (1 x 3.6V lithium battery)
Channels: 2 channels ( reversal & stop per channel)
Battery capacity: 2600 mAh
Current of different safety margin modes: Optical edge sensor 9mA
8.2K 4.2mA
Standby: 70 uA
IP grade: IP 65
Operating temperature: -20°C ~ +60°C
RED Directive 2014/53/EU
Machine Directive 2006/42/EC
EMC Directive 2014/30/EU
BRING A SAFER EFFECT TO DOORS
