MAXIMUM OUTPUT TORQUE | 50NM |
---|---|
RATED OUTPUT TORQUE | 35NM |
INPUT VOLTAGE | 110/220(1+10%)V 60HZ/50HZ 380V-420V |
CONTROL SYSTEM | 24V DC |
MOTOR POWER | 0.45KW |
STATIC HOLDING TORQUE | 400NM |
MAX. OUTPUT SPEED | 24RPM - 32RPM |
OPERATION LIMIT TURNS (LIMIT TRAVEL) | 15 TURNS OF OUTPUT SHAFT (MAX. 6.5M LIFTING HEIGHT RECOMMENDED) |
SLEEVE SHAFT DIAMETER (STANDARD) | Φ25.4MM |
KEYWAY SIZE | 6.3MM |
THERMAL PROTECTION TEMPERATURE | 105℃ |
CONTINUOUS SOUND PRESSURE LEVEL | <70DB |
MAX. CYCLES PER HOUR | 20 |
IP PROTECTION CLASS | IP54 |
TEMPERATURE RANGE | - 20℃ ~ + 60℃ |
STANDARD KIT | DRIVE MOTOR & WIRED CONTROL BOX |
QUICK RELEASE WITH ROPE | INCLUDED |
CHAIN HOIST MODULE | OPTIONAL |
OPTIONAL EDGE SENSORS KIT | OPTIONAL |
Standard multi-functional control box allows for smart and fast configuration of various garage and industrial doors. Convenient operation for commonly used functions.
The Auto Adaptive System (AAS) allows the industrial door opener to automatically identify the door condition to define the best program for the opening and closing speeds, soft-start and soft-stop ranges, andforce sensitivity.

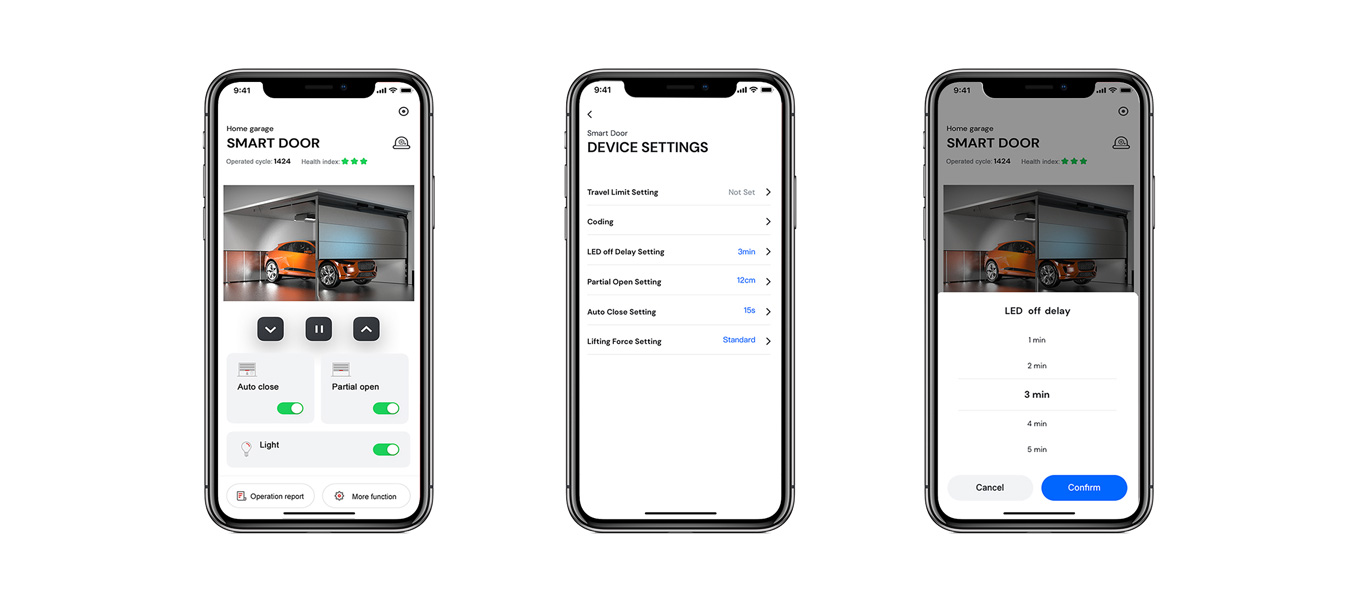

With F-LinX, you’ll always know what’s going on at home, even while you’re away. Let in the postman for expected deliveries or pick ups. It’s peace of mind in the palm of your hand for your convenience so you can enjoy your holiday rest assured.
F-linX is a powerful APP platform which is based on residential, commercial and industrial door and gate openers. It contains almost all the basic functions like open / stop / close the door or gates, partial open, LED light controlling, auto close and force margin and so on. All of them can be set through our F-linX APP.
