FMK motorized s.r.o.

GARAGE DOOR OPENER

OREO

OREO series garage door opener uses an innovative black mirror cover design as well as a white horizontal LED cover design. Depending on the design, it has the compressive and tensile force of 600N, 1000N or 1200N; 600N and 1000N versions are available in the speed variant, which means that they provide faster opening and closing of the garage.

OREO

PARAMETER

Model	600N/600N-Speed	1000N/1000N-Speed	1200N
Input voltage	220-240V / 110-127V, 50-60Hz
Max. opening speed	160mm/second 200mm/second
Max. door height	2400-5000mm
Bottom base material	Metal
Drive mechanism	Chain/Belt
Frequency	433.92MHz / 868MHz
Max. door area	7m²	11m²	13m²
Max. door weight	90kg	140kg	160kg

TECHNOLOGY & STANDARDS

All of our door motors garage are CE, RCM & TUV certified for the entire European & Australian market. Our products are EN12453 & EN12445 approved and include all of the options to make your products smart and compatible in home automation.

Soft-Start & Soft-Stop
Terminal devices supported
Reversal height setting(force margin)
Transformer overload protection
Travel speed setting(door dependent)
Partial open/height setting
L.E.D off delay time setting (1min*N N=1--9)
Automatic closing time setting (time & height)

	Single C rail with chain/belt	C rail cut in 3 pieces with chain/belt
Length	For doors up to	For doors up to
3150mm	2300mm	2300mm
3500mm	2700mm	2700mm
3800mm	3000mm	3000mm
4000mm	3200mm	3200mm

INNOVATED MIRROR DESIGN

OREO series garage door opener is designed based on European aesthetic style. The innovative black mirror cover design with white translucent LED light cover. Everywhere shows the beauty of luxury and atmosphere.

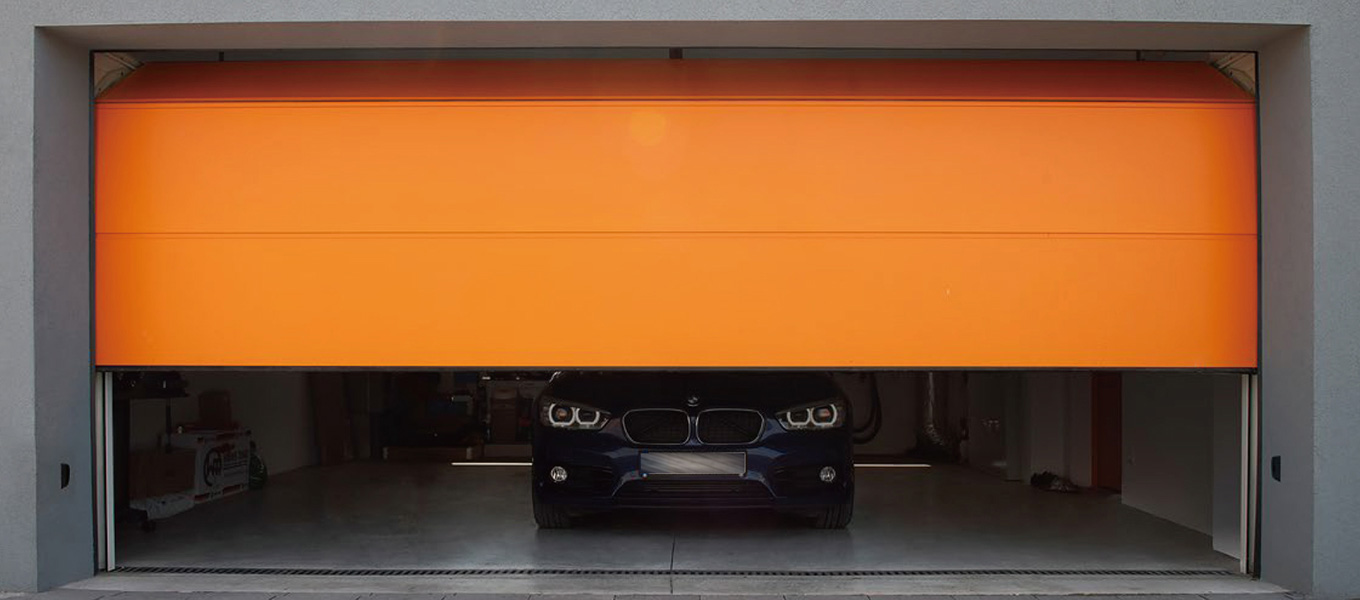

PARTIAL OPEN FUNCTION

All FMK garage door openers come with a partial open function. The open height could be adjustable from 10cm to 90cm. Works with our smart phone app and camera, easy to enter"postman mode".

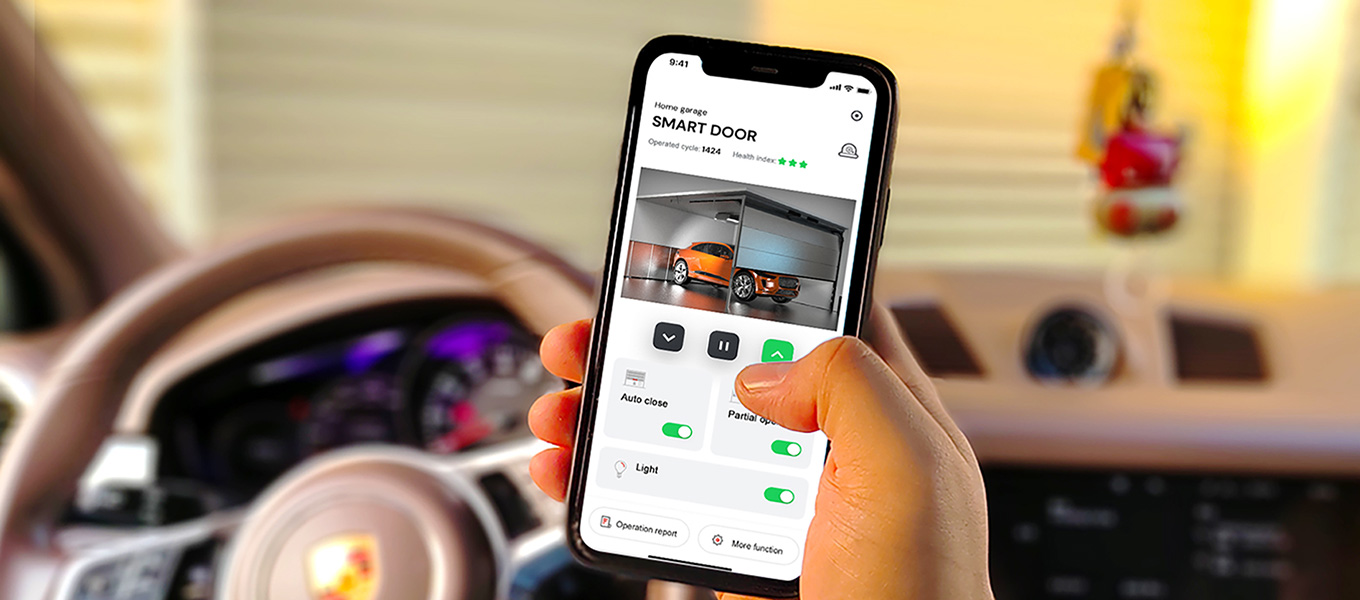

REMOTE CONTROL

Open, close and check the status of your garage door from anywhere.
SECURITY BUTLRER

F-linX provides a health analyst, safety warning, maintenance reminder and notices for doors and gates. It also provides a report of real-time operation curve along with the last 10 operational curves of the opener for the after-sales service team. A great help for early safety and security warnings, as well as an incredibly fast solution for after-sales maintenance.
