Max. output torque | 100NM |
---|---|
Rated output torque | 90NM |
Output speed | 12-32 rpm |
Output shaft/hollow shaft | φ25.4mm/φ31.75 mm |
Static holding torque | 400NM |
Door area | ≤30m² |
Input voltage | 110V/220V(1+10%), 380V-420V |
Standard Frequency | 50HZ |
Motor power | 0.6KW |
Current | 3.0A |
Control system | 24V DC |
Thermal protection temperature | 105 °C |
Max. cycles per hour | 20 cycles |
Class of protection | IP54 |
Limit switch range | 15 turns |
Duty rating | S3=40%ED |
Temperature range | 一 20°C~+60°C |
New brushless motors offer the innovated "non-inductive frequency conversion" technology which delivers more smooth and powerful operations, and convenient speed regulation.

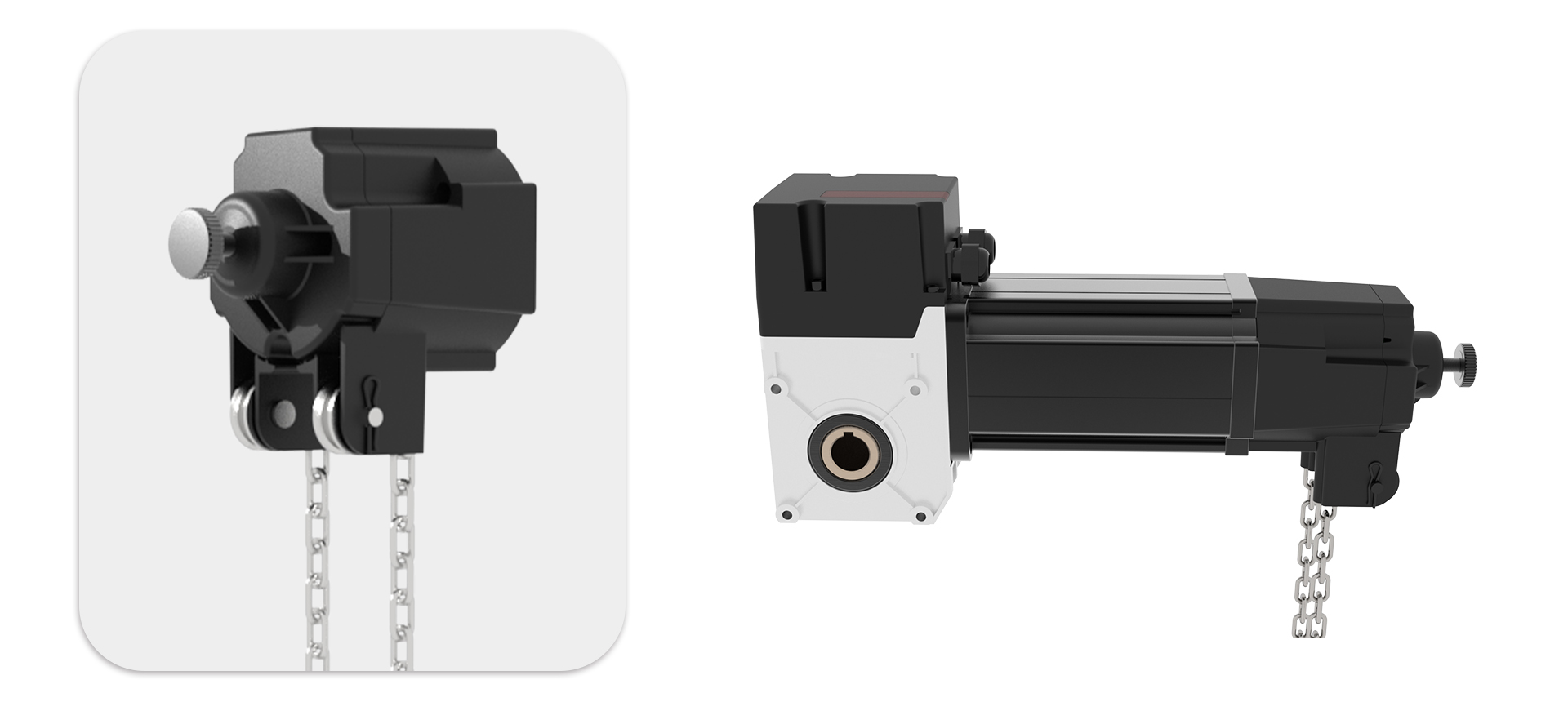

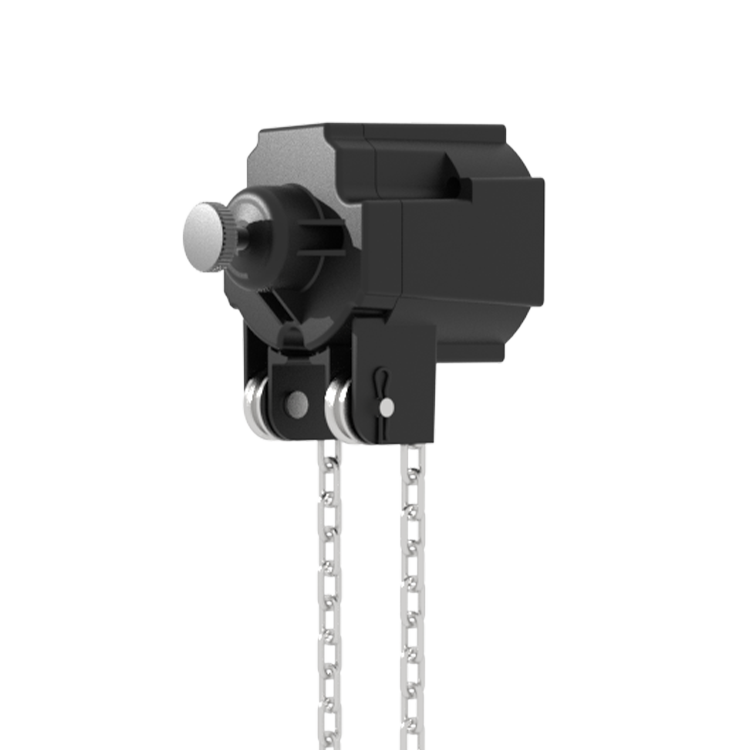

The intergrated chain hoist is designed without a manual cord release; simply pull or release the chain to manually operate the garage or industrial doors directly.
An after-sales engineer, who is specialized in the problem, will soon come for maintenance and servicing. F-linX is the effective and unique bridge between end users, door manufacturers or automation distributors.
F-linX is a powerful APP platform which is based on residential, commercial and industrial door and gate openers. It contains almost all the basic functions like open / stop / close the door or gates, partial open, LED light controlling, auto close and force margin and so on. All of them can be set through our F-linX APP.
