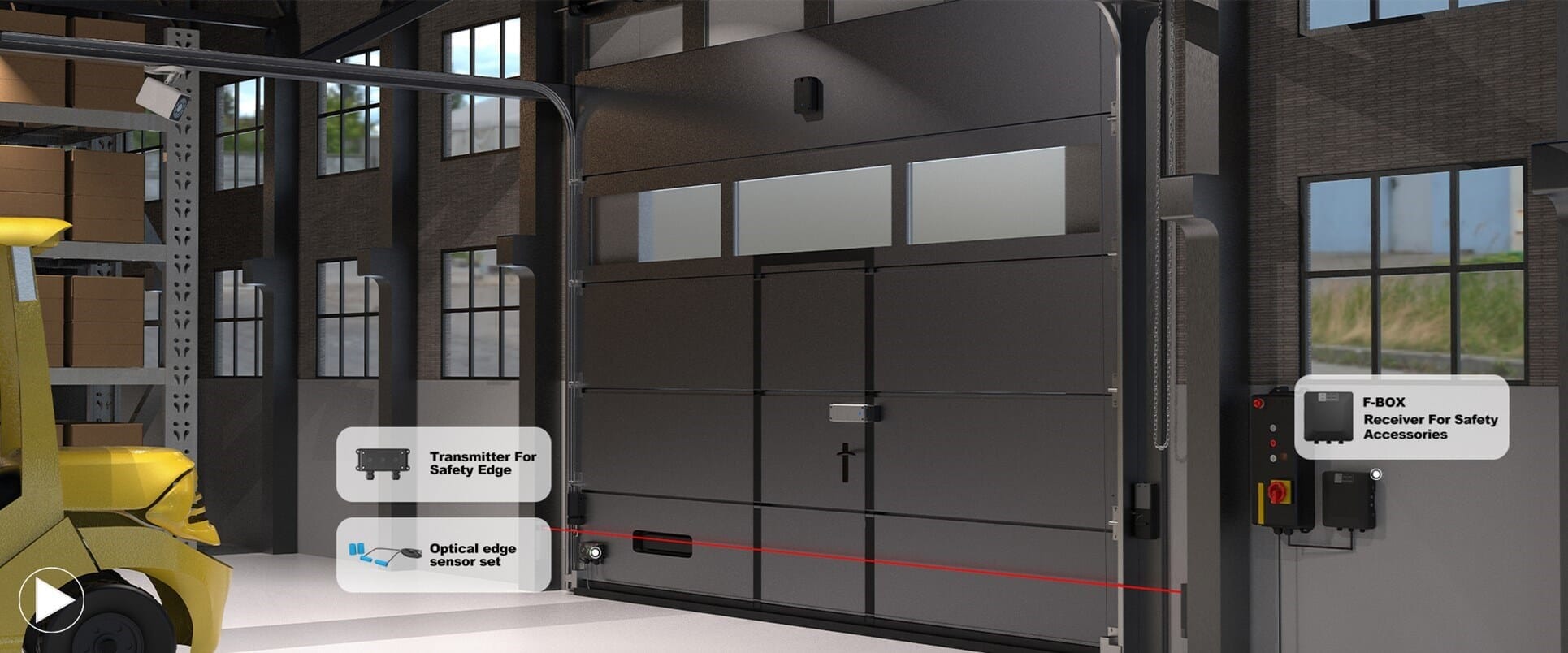

Wireless communication using multi frequency technology between F-box and junction box for wireless optical safety edge kit.
The F-box with a built-in WiFi module, this allow users to linked with "F-linX" APP for "safety center" to track all information about wireless optical safety edge of the door and gates.
F-OPTO is an universal wireless optical safety edge kit, compatible with most brands of motors on the market.
Safety edge transmitter junction box(SE-TX 02)
Radio technology: Trio-Frequency technology
Frequency: Multi from 409.025 MHz – 458.4 MHz
Signal modulation: FSK
Signal range: 20 meters
Power supply: 3.6V DC (1 x 3.6V lithium battery)
Channels: 2 channels (reversal & stop per channel)
Battery capacity: 2600 mAh
Operating consumption: 70 uA
Standby: 15 uA
IP grade: IP 65
Operating temperature: -20°C ~ +60°C
Optical safety edge sensor set(OES)
Range: 1~15m
Operating voltage: 2.8V----12V
Current consumption: 3.4mA----4.6mA
Voltage and transmission frequency: Less than 7V----frequency 400Hz
More than 7V----frequency 1KHz
Housing material: Plastic ABS, Lexan, IR transparent
Wire material: PUR, halogen free, acid- and oil-resistant
Wire length: TX 6m + RX 1m & TX 10m + RX 1m
IP grade: IP 67
Operating temperature: -20°C ~ +60°C
RED Directive 2014/53/EU
Machine Directive 2006/42/EC
EMC Directive 2014/30/EU
